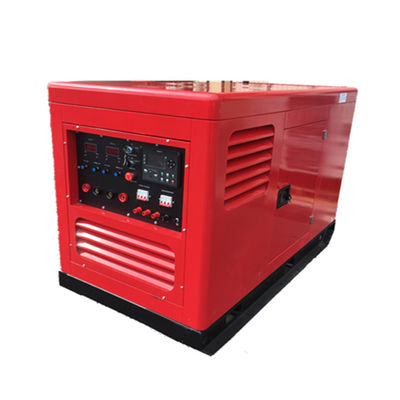

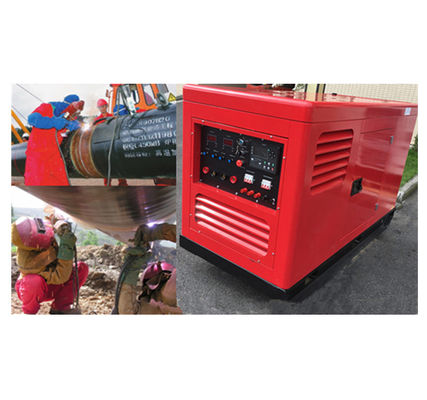

15kva Water Cooled Genset 500A Welder Generator , Diesel Engine ARC Welding Machine IP23

বড় ইমেজ : 15kva Water Cooled Genset 500A Welder Generator , Diesel Engine ARC Welding Machine IP23

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Genor Power
সাক্ষ্যদান:	ISO9001:2008, CE, CCC
Model Number:	GNAW

প্রদান:

Minimum Order Quantity:	1 Set
মূল্য:	negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability:	200/sets per Month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Product name:	500A Diesel engine welding machine	Engine type:	4 strok ,direct injection ,Diesel engine
Welding Current:	30 to 500A	Excitation Type:	AVR Brushless Excitation
Engine RPM:	1500rpm to 1800rpm	Frequency:	50Hz or 60Hz
Protection Class:	IP23	Start system:	Electric start
Warranty:	12 months	Cooling system:	Water cooled
বিশেষভাবে তুলে ধরা:	genset welder generators , portable welder generator

15kva Water Cooled Genset 500A Welder Generator , Diesel Engine ARC Welding Machine IP23

The diesel welder generator is composed of diesel engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power:20 KW output for three-phase, 7KW output for single-phase.

The diesel welder generator adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-500			30-500			30-500
Welding Current (A)	387	430	500	387	430	500	387	430	500
Welding Voltage (V)	35.5	37.2	40	25.5	27.2	30	33.3	35.5	39
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	20Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz or 60Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/20Kw					AC 230V/6Kw
Engine
Engine type	4 stroke , 4cylinder , direct injection , heavy duty diesel engine
Fuel	Diesel
Rated Power	26Kw
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity	60L
Cooling Method	Water-cooled
Fuel Consumption	5.6L/hr
Complete appliance
Weight	710kg
Dimension(mm)	1500×800×1100
Protection Class	IP23

15kva Water Cooled Genset 500A Welder Generator , Diesel Engine ARC Welding Machine IP23 0

15kva Water Cooled Genset 500A Welder Generator , Diesel Engine ARC Welding Machine IP23 1

15kva Water Cooled Genset 500A Welder Generator , Diesel Engine ARC Welding Machine IP23 2

15kva Water Cooled Genset 500A Welder Generator , Diesel Engine ARC Welding Machine IP23 3
